Products Description

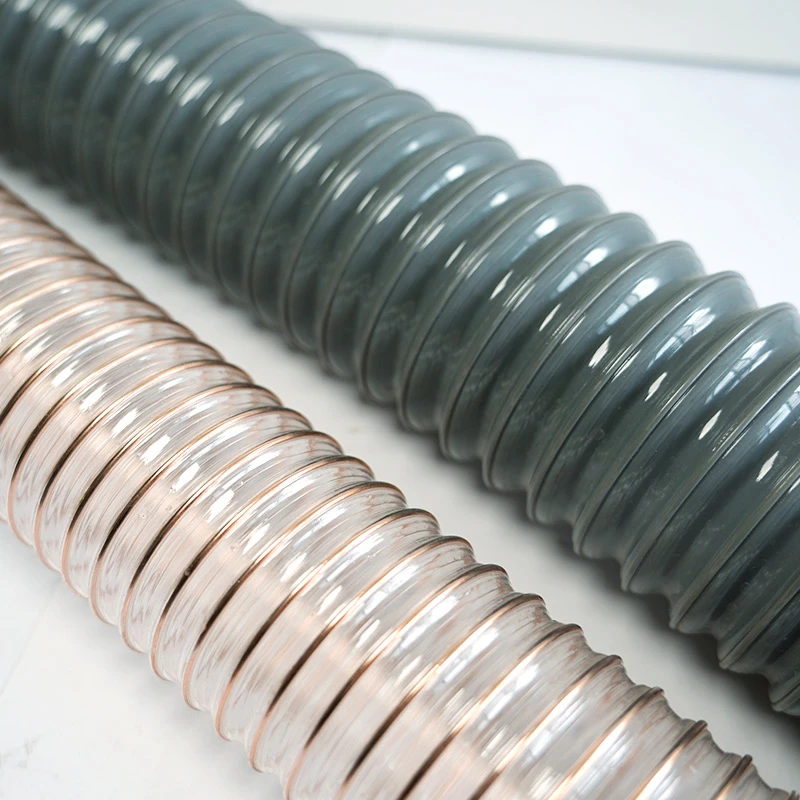

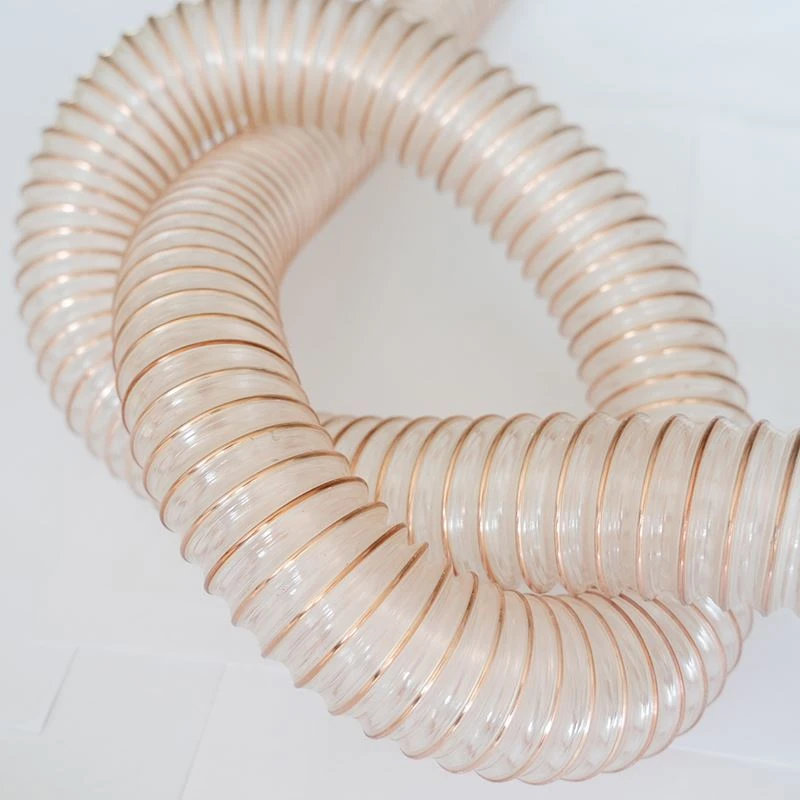

Heavy Duty Steel Wire Hose is a flexible industrial hose reinforced with copper-plated steel wire. It offers excellent flexibility, compressibility, wear resistance, and kink resistance. Its material composition and reinforced structure are designed to support reliable material transfer in demanding industrial environments. The hose provides good resistance to oil and chemicals, making it suitable for conveying a variety of media that are compatible with its materials. The copper-plated steel wire reinforcement enhances overall structural strength and provides good resistance to positive pressure, vacuum conditions, and compression. The hose also features antistatic properties and a relatively small bending radius, making it convenient for equipment connections and flexible pipeline routing. Heavy Duty Steel Wire Hose is widely used for conveying granules, sand, gravel, fine particles, dust, and other suitable materials. It is commonly applied in the glass, woodworking, steel, plastics, mining, shipbuilding, and cement industries. Depending on material compatibility and applicable requirements, it can also be used in food processing and pharmaceutical-related applications.
Product Advantages
Excellent Flexibility and Compressibility
The hose offers excellent flexibility and compressibility, allowing it to accommodate complex pipeline layouts and equipment connections while facilitating installation, movement, and operation.
Oil and Chemical Resistance
The hose provides good resistance to oil and chemicals, making it suitable for conveying various industrial media that are compatible with its materials.
Excellent Kink Resistance
Its carefully designed structure helps reduce kinking caused by bending or improper routing, helping maintain an unobstructed flow passage during operation.
Steel Wire Reinforcement
The copper-plated steel wire reinforcement enhances structural strength and provides good resistance to positive pressure, vacuum conditions, and compression.
Product Characteristics
Outstanding Wear Resistance
The hose is suitable for conveying abrasive granules and powdered materials. Actual wear resistance depends on particle shape, hardness, conveying velocity, and operating conditions.
Small Bending Radius
The hose offers good flexibility and can achieve a bending radius of approximately three times its diameter. The exact minimum bending radius should be confirmed using the technical documentation for the specific product and its intended operating conditions.
Temperature Resistance
The normal operating temperature range is from -30°C to +90°C, with short-term exposure permitted up to +120°C. The actual allowable temperature range should be confirmed according to the conveyed medium, working pressure, and specific material composition.
Material Composition
Depending on the product formulation, the hose may be manufactured without plasticizers and certain other potentially harmful substances. For food processing or pharmaceutical applications, the material composition, hygiene requirements, and relevant suitability must be independently verified.
Relevant Data
| Inner Diameter(mm) | Outer Diameter(mm) | Weight(kg/m) | Overvoltage(bar) | Vacuum(bar) | Bend Radius(mm) |
| 70 | 78 | 0.38 | 0.350 | 0.126 | 43 |
| 80 | 88 | 0.54 | 0.310 | 0.108 | 48 |
| 100 | 108 | 0.61 | 0.250 | 0.072 | 58 |
| 120 | 128 | 0.71 | 0.205 | 0.063 | 68 |
| 130 | 138 | 0.86 | 0.190 | 0.050 | 73 |
| 140 | 148 | 0.91 | 0.175 | 0.050 | 78 |
| 160 | 168 | 1.11 | 0.155 | 0.043 | 88 |
| 180 | 188 | 1.30 | 0.135 | 0.033 | 98 |
FAQ
Q: What is the temperature resistance of Heavy Duty Steel Wire Hose?
A: The normal operating temperature range is from -30°C to +90°C, with short-term exposure permitted up to +120°C. The actual allowable range depends on the conveyed medium, working pressure, ambient temperature, and material properties.
Q: Can Heavy Duty Steel Wire Hose convey oil and chemical media?
A: The product offers good oil and chemical resistance, but this does not mean it is compatible with every type of oil or chemical. Different materials have different levels of resistance to specific media. Before use, verify material compatibility and consider the operating temperature, pressure, and other relevant conditions.
Q: Why does Heavy Duty Steel Wire Hose offer good pressure and compression resistance?
A: The product uses copper-plated steel wire reinforcement to support the hose body and improve its overall structural strength. This helps enhance its resistance to positive pressure, vacuum conditions, and compression. Actual performance depends on the hose design, material composition, and operating conditions.
